One architecture. One software environment. Any board. Any scale.
Exostiv Probe | Exostiv Blade Compact | Exostiv Blade 2U | Exostiv Blade 4U | |
FPGAs | 1 | 1- 4 | 4 – 16 | 16+ |
Users | 1 | 1- 4 | Team | Enterprise |
Bandwidth | 65 – 112.5 Gbps | 112.5 – 450 Gbps | 450 – 1,800 Gbps | 1+ Tbps |
Remote access | — | Yes | Yes | Yes |
Typical use | Individual engineer, single design | Small team, growing design | Verification team, ASIC prototype | Multi-site enterprise |
How does it work?
Exostiv Labs tools add a ‘no-JTAG’ board-agnostic visibility layer to FPGA-based systems used for verification.
It leverages FPGA logic and transceiver resources with powerful external hardware to massively capture data and view your system behaviour from inside at speed of operation.
Exostiv Labs solutions…
- scale with the target platform complexity
- are FPGA platform-independent
- operate at full speed over realistic nr of cycles

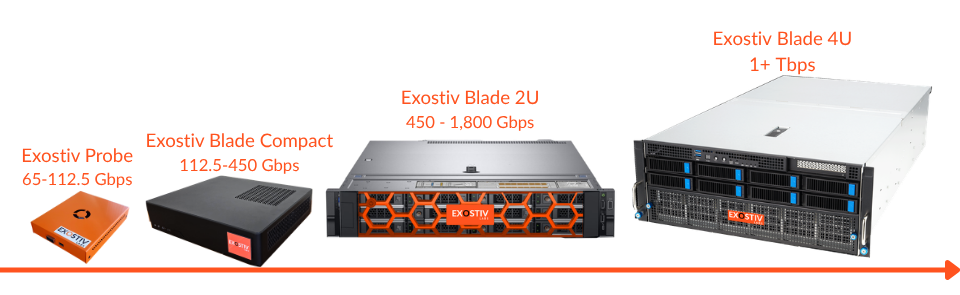

Exostiv Labs products form a continuum, used from single user ‘bench-top’ to enterprise-wide deployment scenarios.
Entry-level EP16000 probe with single FPGA target
Exostiv Blade ‘compact’ network appliance with single FPGA
Exostiv Blade with 450 Gbps+ bandwidth in a 2U chassis
Hardware – technical specifications per model
Series | Model | Bandwidth | Connectors | Trace storage | Interface | Box | Compact chassis | 2U | 4U |
Exostiv Probe | EP16000 | 65 Gbps | 1 | 8 GB | USB 3.0 | ||||
Exostiv Probe | EP28000* | 112.5 Gbps | 1 | 8 GB | USB 3.0 | ||||
Exostiv Blade | EXO-Blade-112* | 112.5 Gbps | 1 | 16 GB | Network | ||||
Exostiv Blade | EXO-Blade-450 | 450 Gbps | 4 | 64 GB | Network | ||||
Exostiv Blade | EXO-Blade-1350 | 1,350 Gbps | 12 | 192 GB | Network | ||||
Exostiv Blade | EXO-Blade-1800 | 1,800 Gbps | 16 | 256 GB | Network | ||||
Exostiv Blade | EXO-Blade-3600 | 3,600 Gbps | 32 | 512 GB | Network | ||||
Exostiv Blade | EXO-Blade-4500-MAX** | 4,500 Gbps | 40 | 5.12 TB | Network |
* Announced for Q2 2026
** Check for availability – custom configurations on-demand.
